    Advantages Of AAC Panel
    08-09-2024

    Insulation

    The thermal conductivity of the aac panel is 0.11. It provides 6 times more insulation than glass, 3 times more insulation than clay, and 10 times more insulation than ordinary concrete.

    Light and high strength

    AAC panel weighs 1/4 of ordinary concrete and 1/3 of clay brick. It is lighter than water, and as light as wood.

    Fire resistance

    It will not burn or produce harmful gases at high temperatures due to the autoclaved aerated concrete is inorganic. At the same time, the low thermal conductivity makes heat transfer slow which can effectively resist fire and protect its structure from fire.

    Machinable

    It is easy to be processed such as being sawn, to be drilled, to be ground, and nailed.

    Sound absorption and sound insulation

    Noise can be reduced by 30-50 dB depending on the thickness of the panel.

    Bearing capacity

    The bearing capacity comprises wind load, snow load, and dynamic load.

    Good durability

    The alc panel is no aging problem and is not easy to weather.

    Environmental friendly material

    There is no radioactivity and no harmful substances overflow.


    AAC Panel Manufacturing Process
    08-09-2024

    AAC panel is a new type of green building wall innovation material that is porous and lightweight. It is made from raw materials such as sand, lime, cement, and foaming agent. The manufacturing process includes raw material preparation, grid mesh production, pouring, mesh inserting, pre-curing, cutting, autoclaving, packing, and loading.

    Steel mesh making

    Grid steel mesh is manufactured with antiseptic treatment.

    Raw material preparation

    Raw materials are ground separately and mixed with water to form a slurry which is ready to be poured into a mold for curing.

    Pouring & mesh inserting

    The slurry is poured into the mold through the pouring device and is further stirred to make the bubble even. The steel mesh is inserted into the mold at this stage.

    Pre-curing

    The prepared mold is delivered to the curing room for high-temperature heating to make it foam and form.

    Demolding

    The tilting crane hoist lifts the mold and turns it over at 90 degrees to loosen the “green cake” onto the side plate.

    Cutting

    The cutting machine receives the “green cake” of autoclaved aerated concrete and cut it into the preset specifications. The leftover debris on the surface of the “cut cake” will be removed by the overturning table and recycled to be used as the next round material.

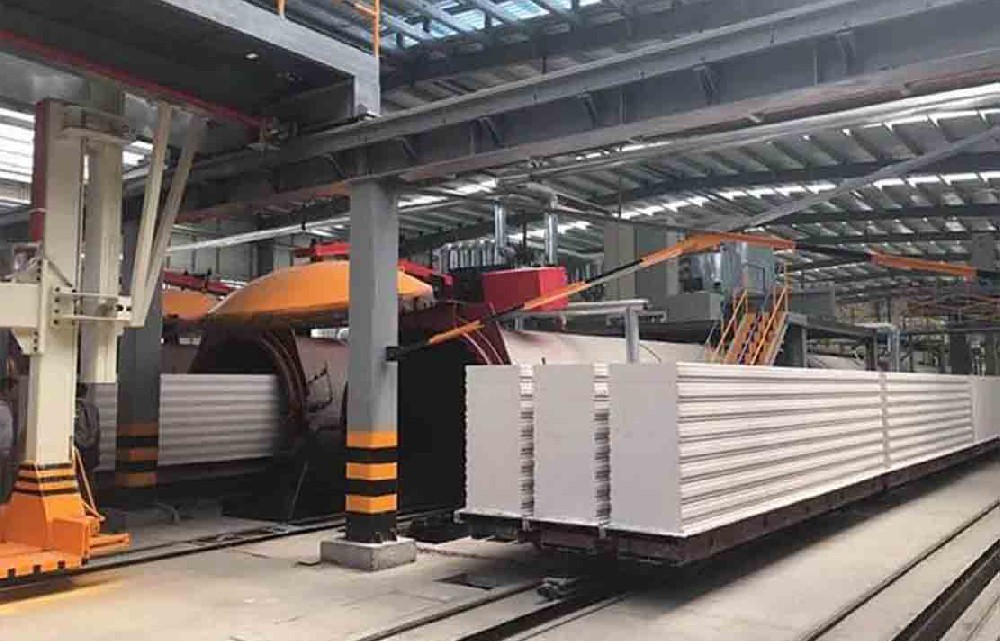

    Autoclaving

    The half-finished “panel cake” will be grouped and sent into autoclaves to get higher strength by high-pressure heatings.

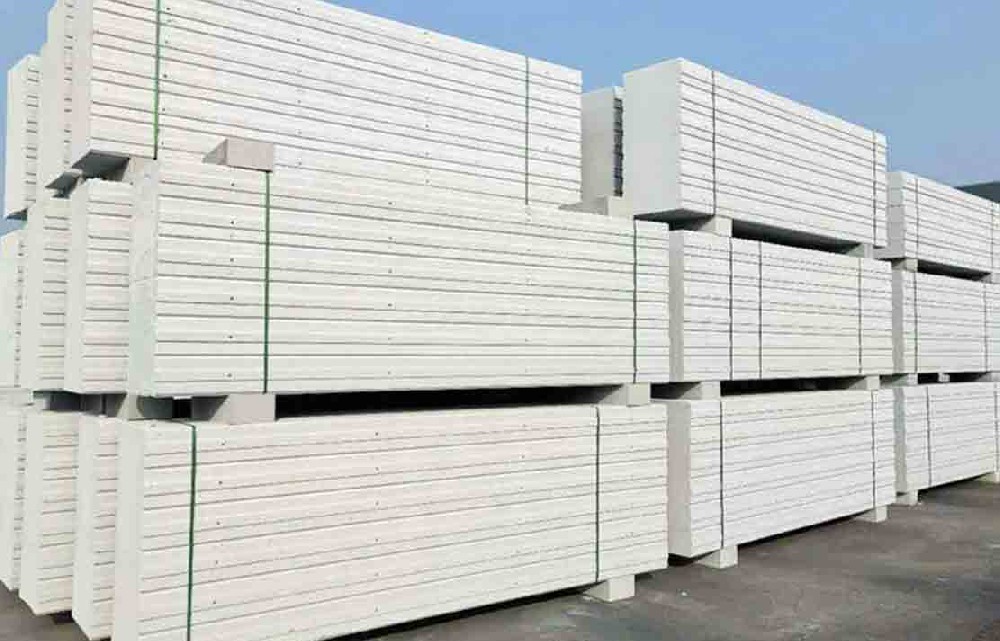

    Packing & loading

    After the panels are out of autoclaves, they will be separated by separating machines and then packed by automatic packing machines. Then, the forklift truck transfer the finished aac panel to the storage yard.

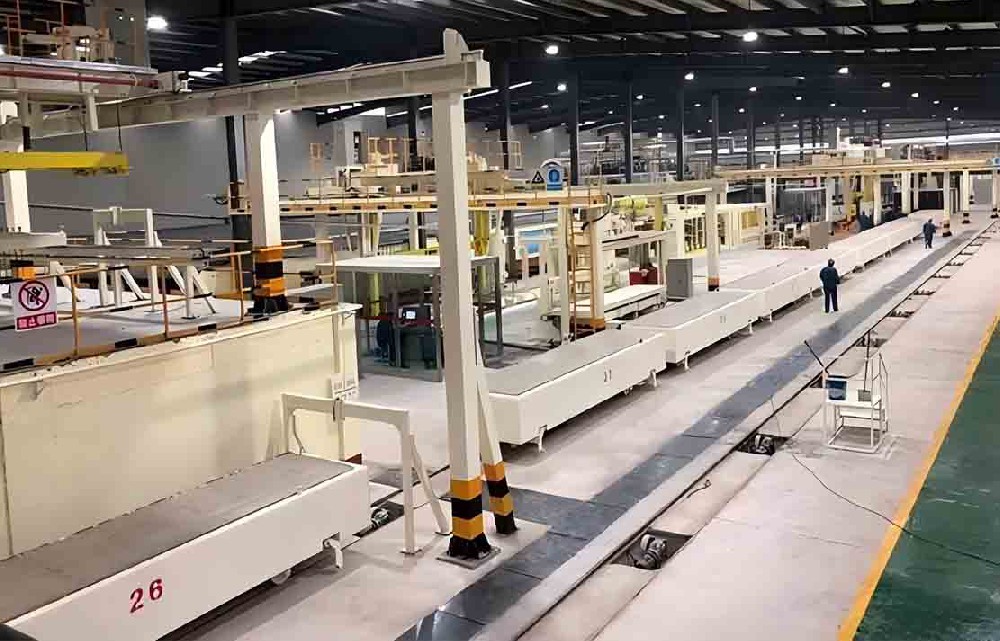

    AAC Panel Manufacturing Machines
    08-09-2024

    CNBM provides all of the machines needed for the AAC panel production lines. The main equipment is a jaw crusher, wet or dry ball mill, storage silo, steel mesh-making machine, steel mesh inserting machine, pouring mixer, mold, ferry cart, crane hoist, cutting machine, overturning machine, rails and plates, autoclave, and packing machine.


    Specification Of AAC Blocks
    08-09-2024

    Autoclaved Aerated Concrete block is referred to as AAC block. It is a precast, lightweight building material comprised of sand, cement, lime, gypsum, water, and an expansion agent from natural raw materials. The material acquires a cellular structure as a result of the expanding agent’s creation of air pockets. In an autoclave, a high-pressure vessel, steam under pressure is used to cure AAC blocks. This procedure produces a construction material with exceptional thermal insulation capabilities, fire resistance, and sound insulation that is lightweight, dimensionally precise, and very durable. The ease with which AAC blocks can be handled, cut, and installed as well as how quickly and cheaply they can be installed make them a popular choice for building projects.

    Length

    Height

    Width

    600

    200, 250, 300

    75, 100, 125, 150, 175, 200, 250

    600

    240, 300

    60120180240

    Other sizes upon request
